Integrated Loop Technology – ILT
Intergrated Loop Technology – ILT is a process that combines the structural composite component with a joining component. All in a single automated fibre placement process. The result is a joint that is integral to the structure.
- Efficient material use – can eliminate carbon fibre reinforced patches or over-laminated joints
- Reduced machining – joint hole designed into the ILT filament placement process
- Reduced overall production and labour time – higher productivity, lower part costs achievable
- Stronger joints – specifically parts with tension or bending stresses
Application Examples

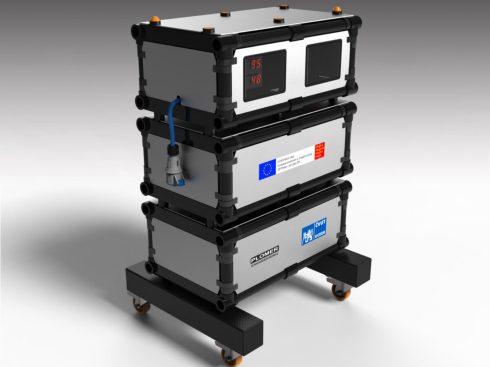

EV emergency charge battery cradle
- Lightweight modular structure consisting of repeated ILT connectors and tubes produce using an automated process
- Easy assembly
- 30% – 40% lighter than steel structure

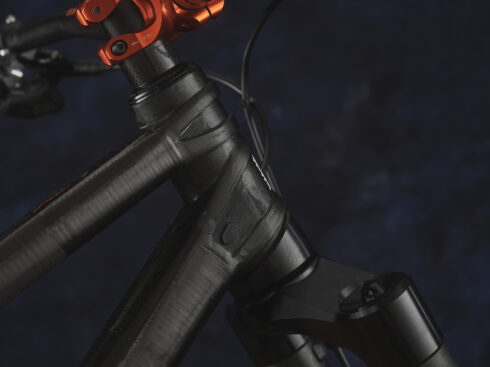

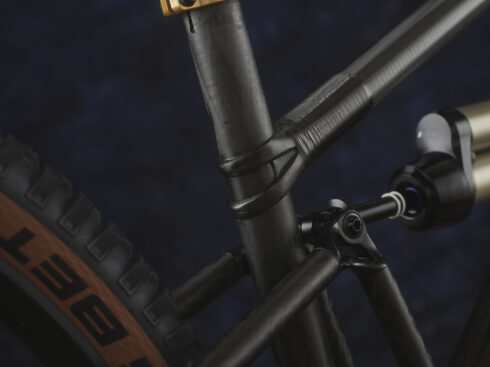

Bike frame front triangle
- Strong joining method with efficient use of carbon
- Reduced secondary bonding and over-laminating
- Reduced surface finishing and faring
- Consistent quality of part

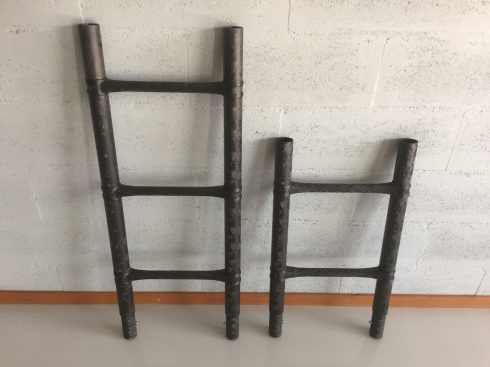

Lightweight tactical ladder
- Compared with the standard tube assembly technique
- 50% fewer parts in assembly
- 40% fewer production operations
- 40% reduced total production time
Other Applications
- Automation handling concept

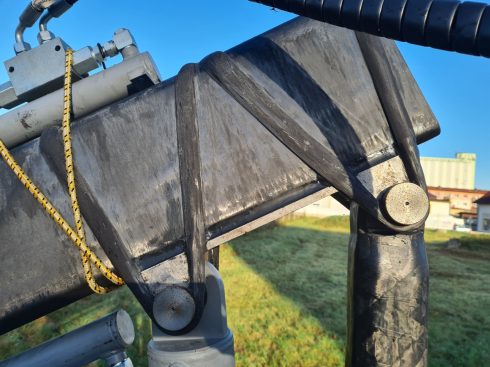

- Linkage struts, kinematics
- Frame systems

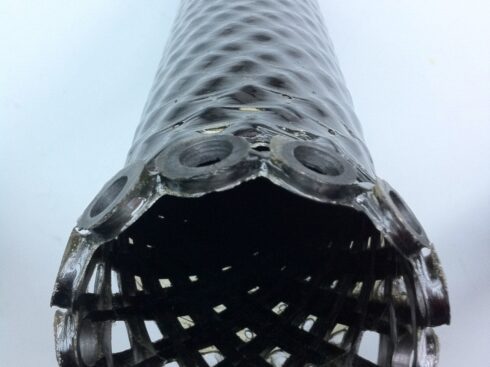

- Driveshaft
- Hydraulic cylinders
